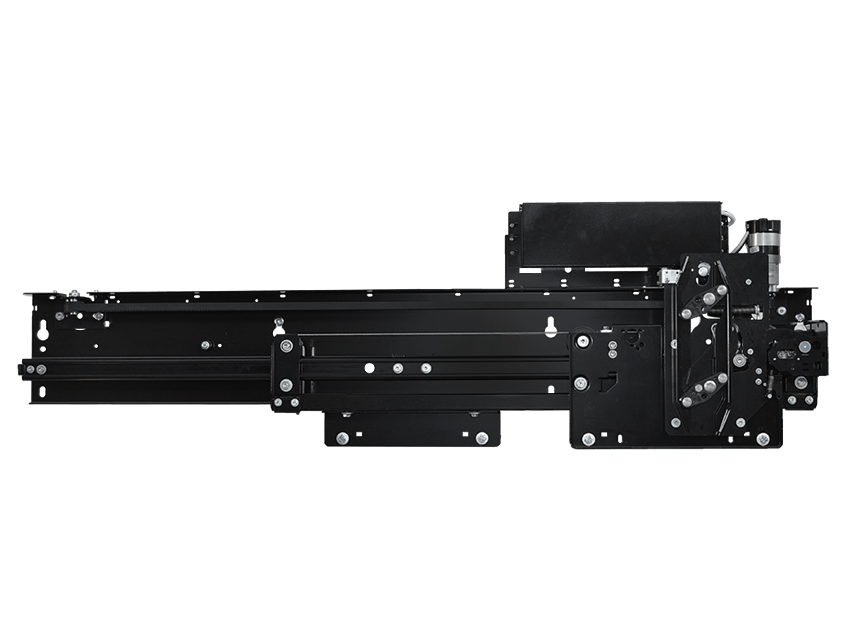

Wittur Augusta EVO ECO Lift Car Door

Advantages:

• Affordable quality door for the residential market
• Effective design / Reduced depth and height dimensions
• Easy and fast installation / maintenance
• Standard version compliant with EN 81-20/50 with integrated car door lock
• Coupler without integrated car door lock available as option for modernization projects
• Compact 100 mm coupler without integrated car door lock available as option for reduced pit elevators

INSTALLATION

• Reduced depth and height dimensions
• 3D adjustment possibilities to overcome offset shaft and irregular field conditions
• Fast assembly time

PERFORMANCE

• Low vibrations due to assembly design
• Same rollers as Hydra series guarantee low operating noise
• Upper rollers 56Ø mm
• Proven reliability and durability of key components
• ECO+ door drive (vertical or horizontal assembly)
• Low energy consumption, low operating noise

MAINTENANCE

• Easy access for maintenance parts
• Same components for central and side opening version
• Reduced stock and spare part management
• Modular construction: same wear and tear components and spare parts as the landing door.

EXECUTIONS

• Standard metal sheet panels

FINISHES

• Prime finish powder painted RAL 7032 (embossed)
• Powder painted RAL (embossed)
• Stainless steel
• Skinplate

Type	ECO+
Light curtain	Fixed
IP54	-
Drives	3-phase PMSM Vector control
Power Supply	Univ. (127V, 2A) +/-20% (230V, 1A) +/-20& 50/60 Hz
Class Protection	IP20
Maximum movable masses (car and landing door panels)	130 kg
Car door lock (Optional)	Available
Self-learning	Available
Protective device - Power Supply	24V DC +10% 150 mA
Emergency battery drive	18-26 VDC max 5A



Code	Drive position	Series	Door Type	Illustration	Clear opening min. (mm)	Clear opening max. (mm)	Clear height min. (mm)	Clear height max. (mm)
02/C		3215	02/C		700	1100	2000	2200
12/L		3215	12/L		700	1100	2000	2200
12/R		3215	12/R		700	1100	2000	2200
