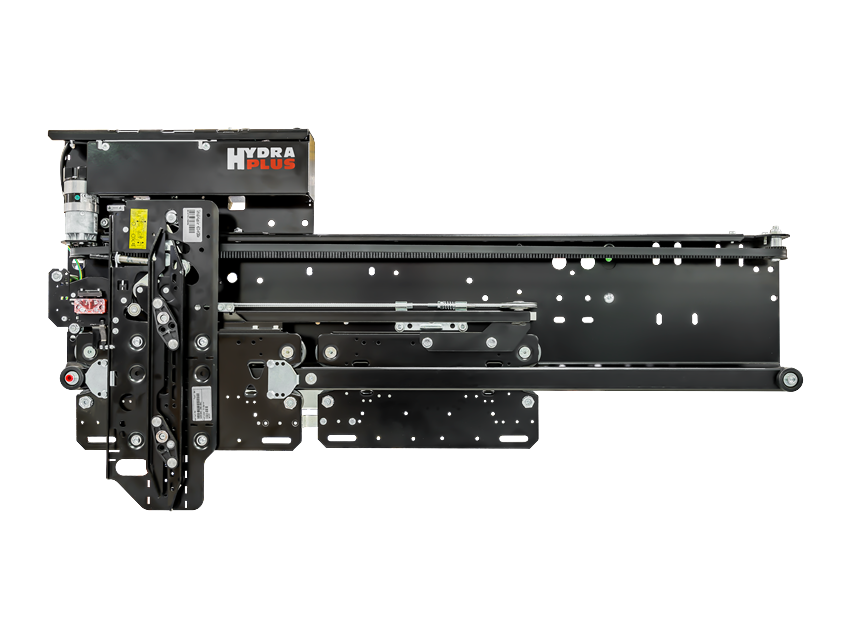

Wittur Hydra Plus Lift Car Door Hydra Plus is a door system which can be used with any kind of application from residential buildings up to highly frequented office buildings and hotels. Advantages: Multifunctional door designed for maximum application flexibility Wide range of executions and options such as special couplers for modernization to interface with existing landing doors of other manufacturers Can be supplied as an automatic or a semi-automatic door for existing swing door installation with car door lock (restrictor) Compliant with EN81-20/50 Modularity (variuos combinations between drives and models) Pre-adjusted and tested in the factory with self-learning functions for opening and closing times speed Car door lock avalible as standard for automatic doors INSTALLATION Adaptions at existing components and special designed parts are possible Fast and easy installation because there is no more need for additional adjustments in the site Door operators are pre-adjusted and factory tested (Plug & Play). PERFORMANCE Low energy consumption Smooth operation even at high door speeds Closing times according to disable people rules Fully electronically controlled closing force Different door drives possible ECO+.MIDI+,SUPRA - depending on the traffic of the installation Optional upper rollers 56Ø mm of specific material for each kind of application to ensure the highest comfort and a reduced operating noise. MAINTENANCE Small numbers of parts result in reduced number of spares and highly lifetime Easy to mantain EXECUTIONS Standard car door (with sheet panels) Glass panels door Glass-framed panels door IP54 Option Aluminium sill as standard Different sill types possible including heavy load sills Automatic and Semi-automatic execution possible FINISHES Prime finish painted (RAL 7032) Special RAL powder painting Stainless Steel Colored Stainless steel Aluminium Coloured aluminium Prepainted aluminium Extruded aluminium Plasticized sheet metal Plastic laminate Type ECO+ MIDI+ SUPRA Light curtain Fixed and dynamic Fixed and dynamic Fixed and dynamic IP54 Optional Optional Optional Drives 3-phase PMSM Vector control 3-phase PMSM Vector control 3-phase PMSM Vector control Power Supply Univ. (127V, 2A) +/-20% (230V, 1A) +/-20& 50/60 Hz Univ. (127V, 6A) +/-20% (230V, 4A) +/-20& 50/60 Hz Univ. (127V, 6A) +/-20% (230V, 4A) +/-20& 50/60 Hz Class Protection IP20 IP20 IP20 Maximum movable masses (car and landing door panels) 130 kg 300 kg 700 kg Car door lock (Optional) Available Available Available Self-learning Available Available Available Protective device - Power Supply 24V DC +10% 150 mA 24V DC +10% 150 mA 24V DC +10% 150 mA Emergency battery drive 18-26 VDC max 5A 18-26 VDC max 25A 18-26 VDC max 20A Code Drive position Series Door Type Illustration Clear opening min. (mm) Clear opening max. (mm) Clear height min. (mm) Clear height max. (mm) 02/C 3201 02/C 600 1800 1900 3500 12/L 3201 12/L 600 1800 1900 3500 12/R 3201 12/R 600 1800 1900 3500 32/L 3201 32/L 600 2100 1900 3500 32/R 3201 32/R 600 2100 1900 3500 35/L 3201 35/L 600 1400 1900 3500 35/R 3201 35/R 600 1400 1900 3500 42/C 3201 42/C 1200 3500 1900 3500 44/C 3201 44/C 600 1150 1900 3500 62/C 3201 62/C 1500 3500 1900 3500 66/R 3201 66/R 900 1700 1900 3500 72/L 3201 72/L 600 1400 1900 3500 72/R 3201 72/R 600 1400 1900 3500
