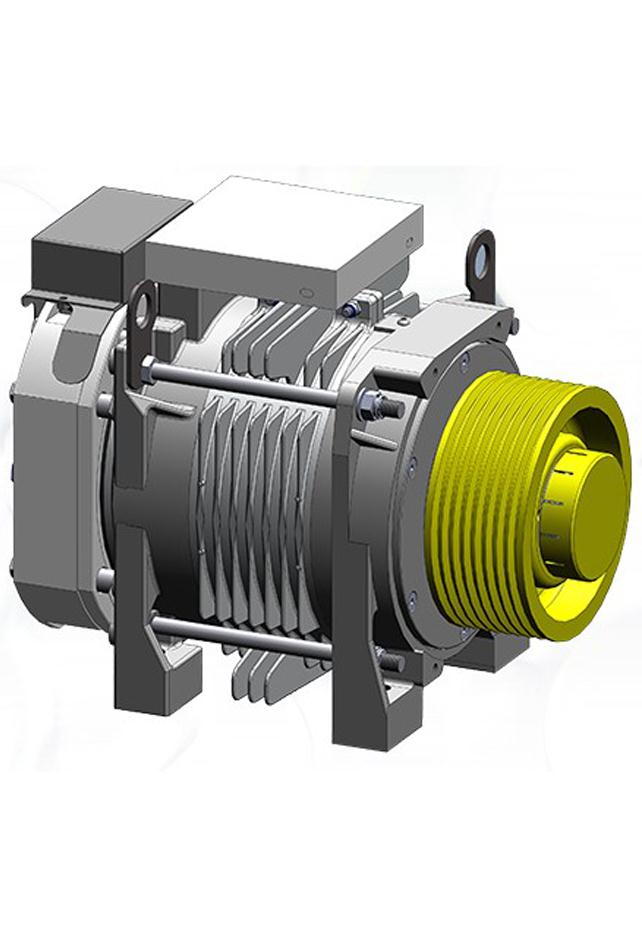

Alberto Sassi G200 T1 Gearless Machine Motor carrying capacity is 225 - 800 Kgs. Click onto the image for technical features.

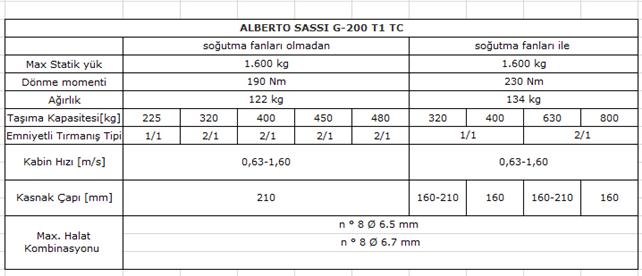

G200 T1 Teknik (Technical Drawing)
ALBERTO SASSI G-200 T1 through the applied system these machines work quite noiseless at maximum efficiency. These machines torque is reduced by %20.
ALBERTO SASSI G-200 T1 maximum static load of this model gearless machine motor is 1,600 kg.
Carrying capacity is 225 kgs. for the models of 1:1 roping systems without cooling fans. For 2:1 roping systems carrying capacity range is changing from 320 to 480 kgs.
Carrying capacity range is changing from 320 to 480 kgs. for the models of 1:1 roping systems with cooling fans. For 2:1 roping systems carrying capacity range is changing from 630 to 800 kgs.
-
Increased resistance against to external factors through the special surface structure.
-
Improved heat evacuation with vertical blades.
-
Height dimensions reduced by special terminal box.
-
Suitable with other inverters.
DF brake series, are designed according to + A3 1998:2009 directives and EN 81-1
