320 - 1100 Kg capacity G300 T2 machine motor weight is 200 Kgs. Carrying capacity is 630-1250 kgs. Click onto image for more details.

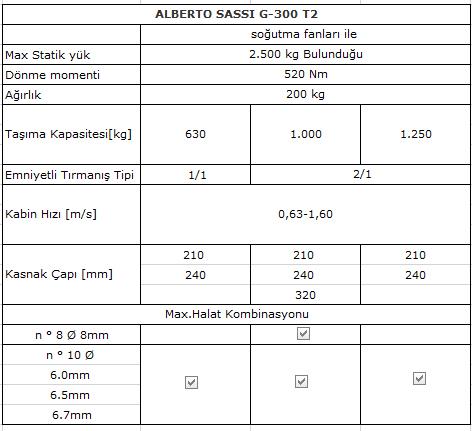

G300 T2 Teknik Bilgiler
G300 T2

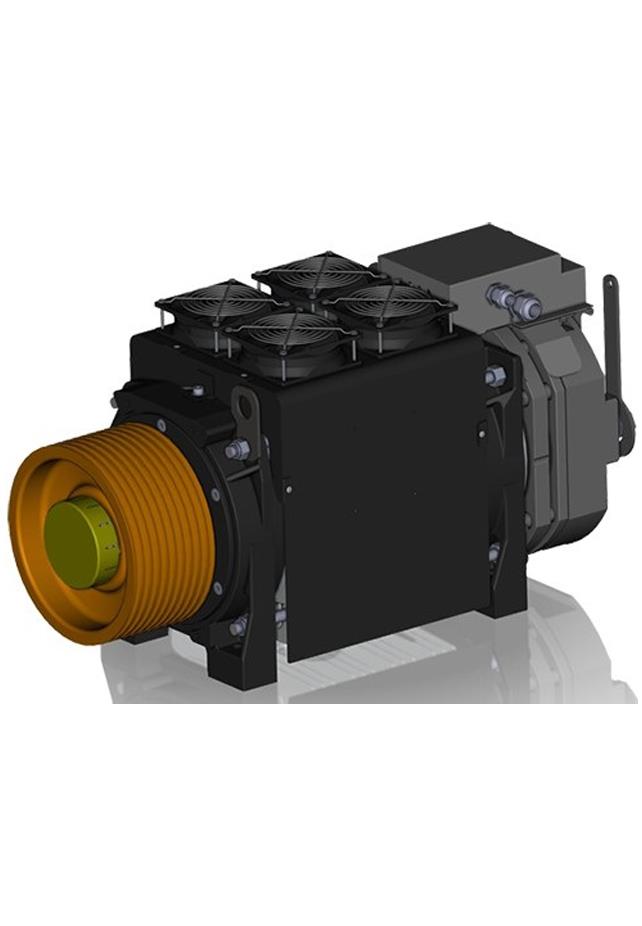

ALBERTO SASSI G-300 T2 gearless machine motor is upper model of G-300 T1. It has synchronic motor. Compact machine motor, especially in MRL system provides easy use. Quite noiseless at high comfort and maximum efficiency. These machines torque is reduced by %20
ALBERTO SASSI G-300 T2 Maximum static load capacity is 2500 kgs
Carrying capacity is 630 kgs. for 1:1 roping system. 1000 – 1250 kgs for 2:1 roping system.
-
Increased resistance against to external factors through the special surface structure.
-
Improved heat evacuation with vertical blades.
-
Height dimensions reduced by special terminal box.
-
Suitable with other inverters.
DFXY brake is compatible with EN 81-1, and designed according to +A3 1998:2009 directives.
