Carrying capacity of G300 T0 machine is 225-800 Kgs. Click onto image for technical features.

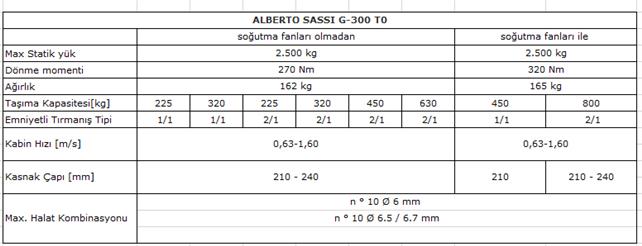

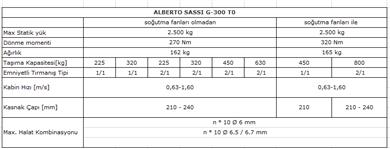

G300 T0 Teknik Bilgiler

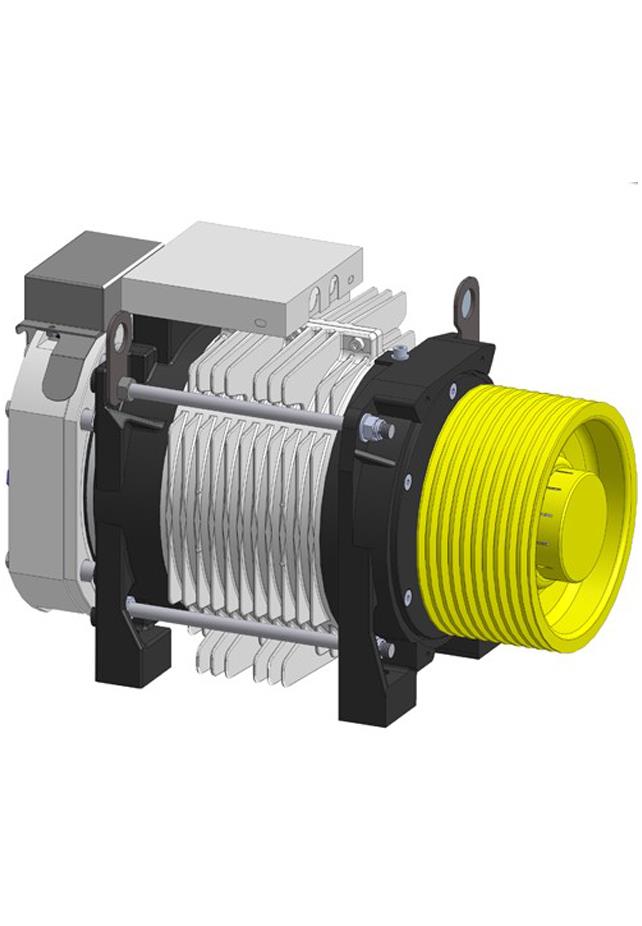

ALBERTO SASSI G-300 T0 gearless machine motor provides working quite noiseless at high comfort and maximum efficiency. These machines torque is reduced by %20
ALBERTO SASSI G-300 T0 Maximum static load capacity is 2500 kgs
Carrying capacity is 225 to 320 kgs. for the models of 1:1 roping systems without cooling fans. For 2:1 roping systems carrying capacity range is changing from 225 to 630 kgs.
Carrying capacity range is 450 kgs. for the models of 1:1 roping systems with cooling fans. For 2:1 roping systems carrying capacity range is 630 kgs.
-
Increased resistance against to external factors through the special surface structure.
-
Improved heat evacuation with vertical blades.
-
Height dimensions reduced by special terminal box.
-
Suitable with other inverters.
DFXY brake is compatible with EN 81-1, and designed according to +A3 1998:2009 directives.
