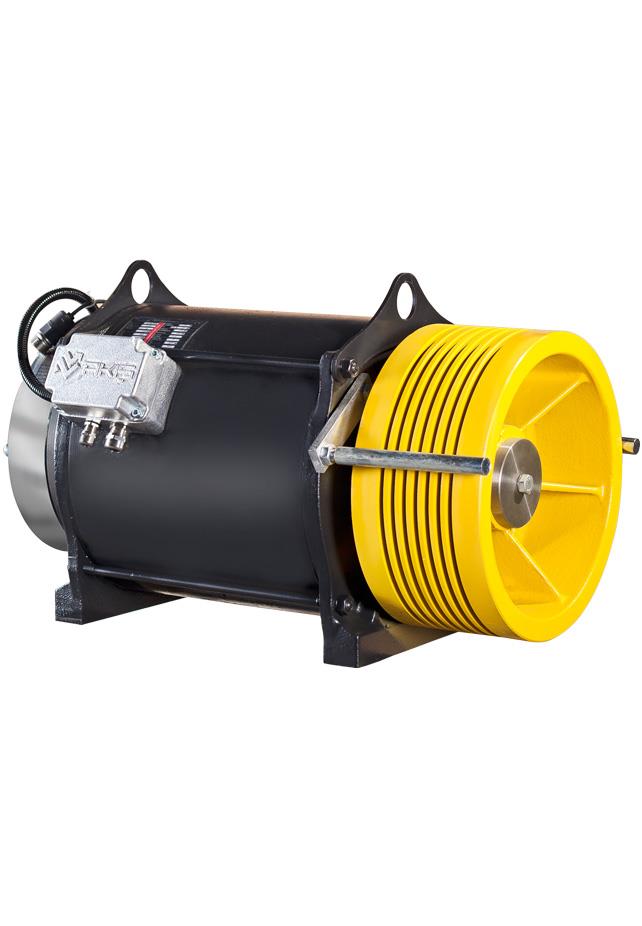

Please find the technical details of AK5 Gearless traction machine by click on the picture.

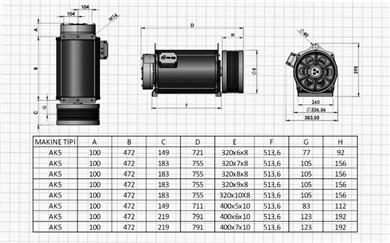

AK5 Teknik (Technical Drawings)

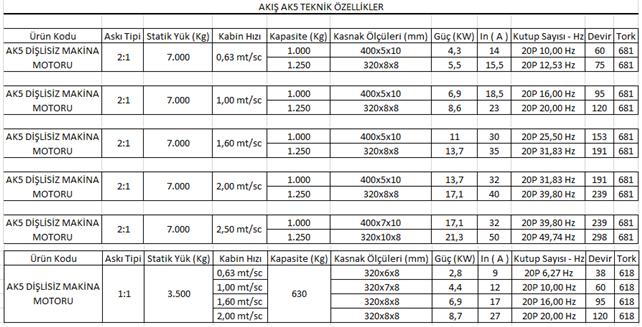

Teknik Bilgiler
Maximum Static load of AK5 Gearless traction machines is 7000 kg. for 2:1 roping. Capacity is from 1000 kg. up to 1250 kg. Machine power is from 4,3 KW up to 21,3 KW.
Maximum Static load of AK5 Gearless traction machines is 3500 kg. for 1:1 roping. Capacity is 630 kg. Machine power is from 2,8 KW up to 8,7 KW.
Available for Machine roomless shaft.
